| Brand Name : | Yaheng |
| Model Number : | Reaming shell |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 5000 piece per month |
| Delivery Time : | 1~10 working days |
Specifications
| Features: | Natural Or Synthetic Diamond | Product Name: | Reaming Shells |
| Machine Type: | Drilling Tools | Type: | Core Drill Bit,Construction Tool Parts |
| Application: | Geological Exploration, Mining Exploration, Hydrogeological Exploration And Oil, Gas, Exploration | Model Number: | LTK48, LTK 60, TT48, TT60 |
DESCRIPTION:

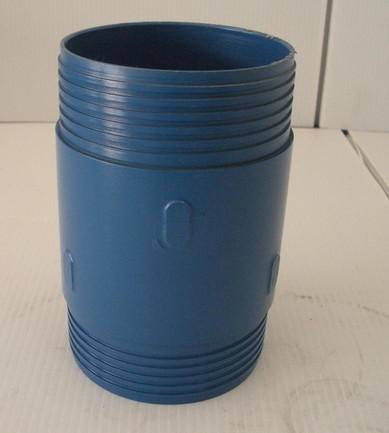

Reaming shell is used to couple the drill bit with the core barrel. It is suitable for use on all conventional
and wireline core barrel. This product is mainly designed to ream the hole to the standard diameter. It can
keep the stability of the core barrel. When the old bit is replaced by the new one, reaming shell can also
provide sufficient clearance for the new bit. It can also help to resist the abrasion of the core barrel.
Features:
Item | Set Diameter (mm) |
AQ | 47.88~48.13 |
BQ | 59.82~60.07 |
NQ | 75.57~75.82 |
HQ | 95.85~96.27 |
PQ | 122.43~122.81 |
BQ3 | 59.82~60.07 |
NQ2 | 75.57~75.82 |
NQ3 | 75.57~75.82 |
HQ3 | |
PQ3 | 122.43~122.81 |
B46 | 46.2~46.4 |
B56 | 56.2~56.4 |
B66 | 66.14~66.4 |
B76 | 76.2~76.5 |
B86 | 86.2~86.5 |
B101 | 101.2~101.5 |
B116 | 116.2~116.6 |
B131 | 131.19~131.57 |
B146 | 146.22~146.6 |
T246 | 46.2~46.4 |
T256 | 56.2~56.4 |
T266 | 66.14~66.4 |
T276 | 76.2~76.5 |
T286 | 86.2~86.5 |
T2101 | 101.2~101.5 |
T676 | 76.2~76.5 |
T686 | 86.2~86.5 |
T6101 | 101.2~101.5 |
T6131 | 131.19~131.57 |
T6146 | 146.22~146.6 |
NWG | 75.57~75.82 |
HWG | 99.11~99.36 |
NWM | 75.57~75.82 |
NMLC | 75.57~75.82 |
HMLC | 97.80~98.20 |
Q" Series: AQ,BQ,NQ,HQ,PQ(Front end & Back end Type)
T Series: T36,T46,T56,T66,T76,T86
WT Series: RWT,EWT,AWT,BWT,NWT,HWT(Single Tube/Double Tube)
WG Series: EWG,AWG,BWG,NWG,HWG (Single Tube/Double Tube)
WM Series: EWM,AWM,BWM,NWM
T2/T6 Series: T256,T266,T276,T286,T2101/T676,T686,T6101,T6116,
T6131,T6146,T6H
Others: NMLC,HMLC,LTK48,LTK60,ect…
|
|
